Ortofon MC20MkII cartridge
Magyar
English
Type:
Moving Coil
Output voltage:
0.09mV
Frequency response:
20Hz-20kHz +/- 1dB
Recommended load impedance:
> 10Ω
Channel balance @ 1kHz:
< 1.5dB at 1kHz
Channel separation @ 1kHz:
> 25dB at 1kHz
> 15dB at 15kHz
Stylus tip:
8μm*40μm Fine-Line
Compliance:
12μm/mN at 10Hz
Recommended tracking force:
1.7g +/- 0.2g
Color:
Silver
Weight:
7g
Ortofon MC20MkII Phono Cartridge Specifications

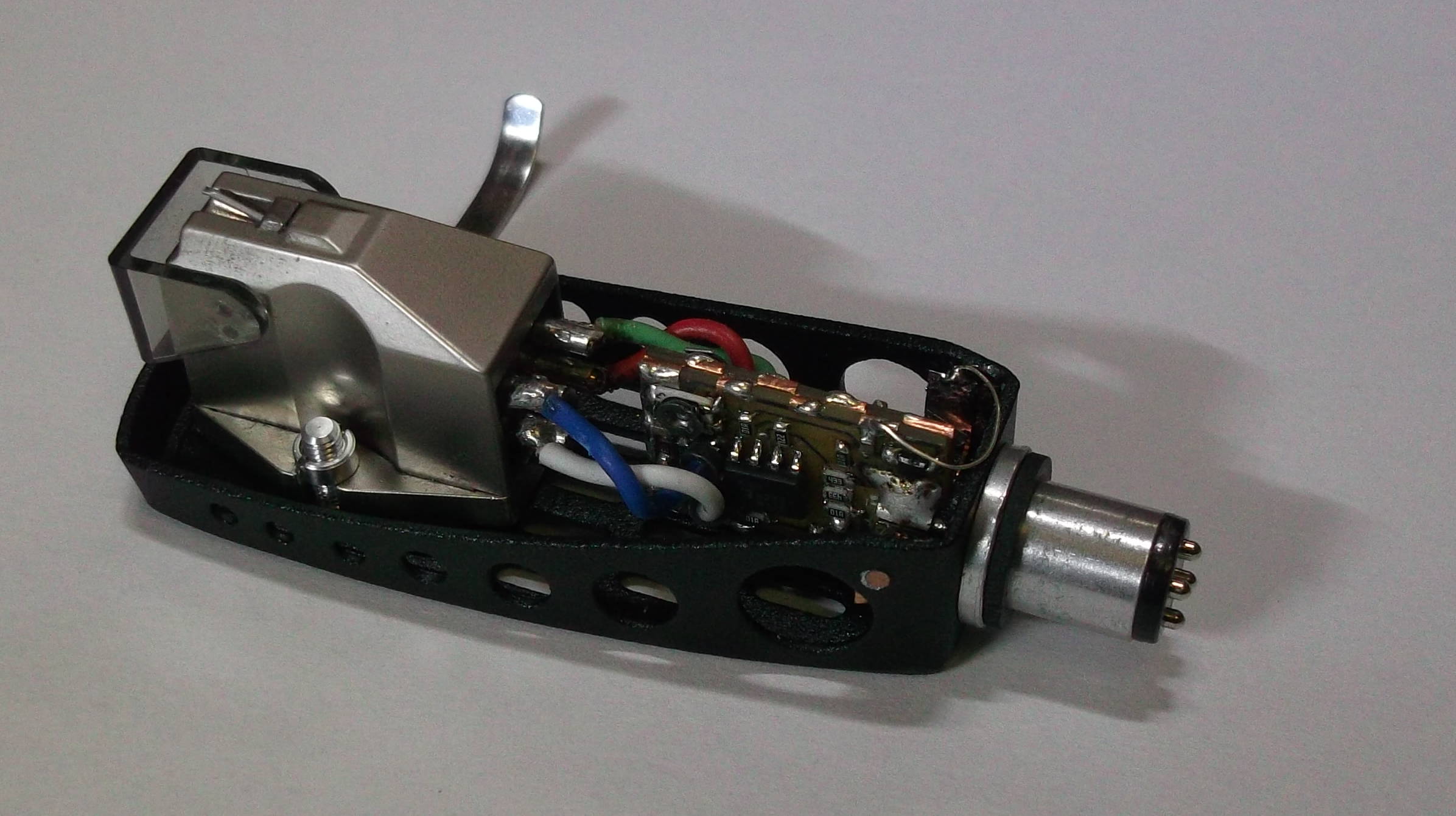

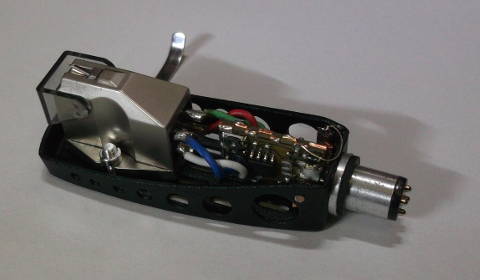

The head and its preamplifier in the shell

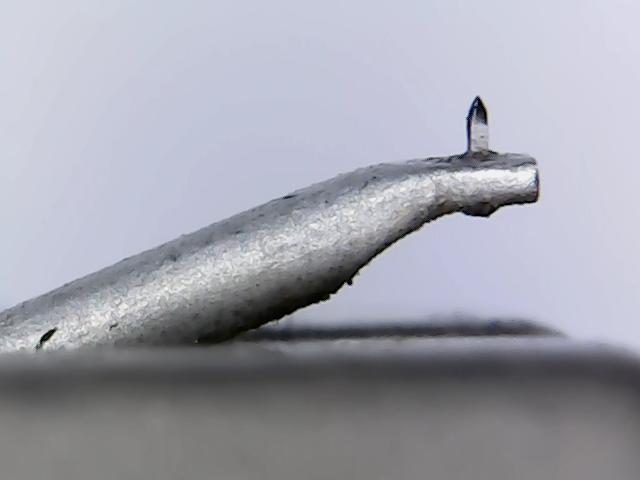

The original cantilever and the diamond.

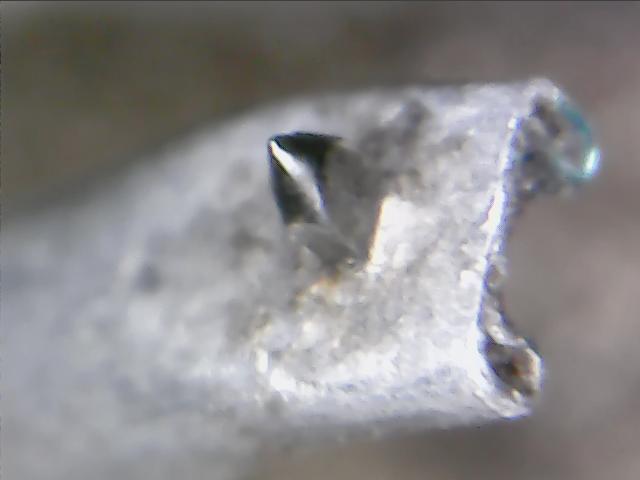

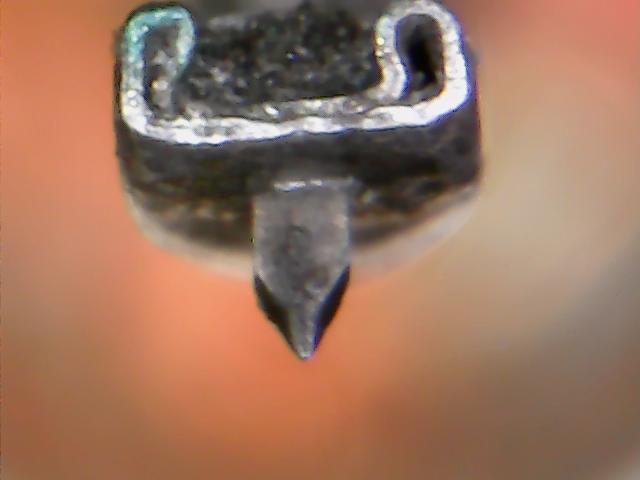

The diamond in higher magnification.

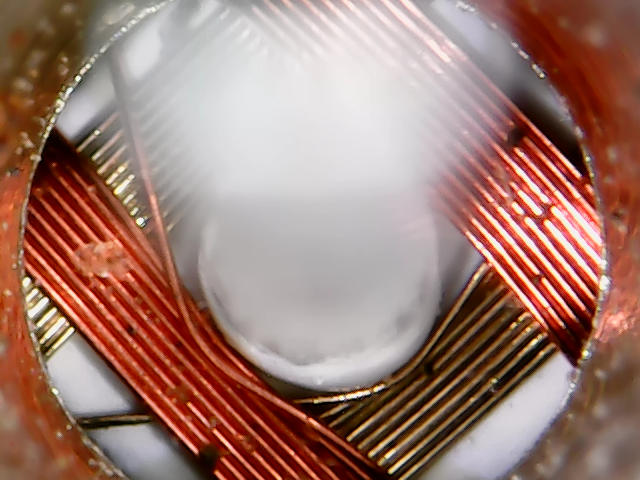

An interesting view of the coil.
The full horizontal size of the picture is cca 1mm, so the wire diameter is cca 0.02mm. Each coils have 2x10 turns.
